01
High Precision
Designed for precise and dependable measurement, helping provide accurate monitoring results.

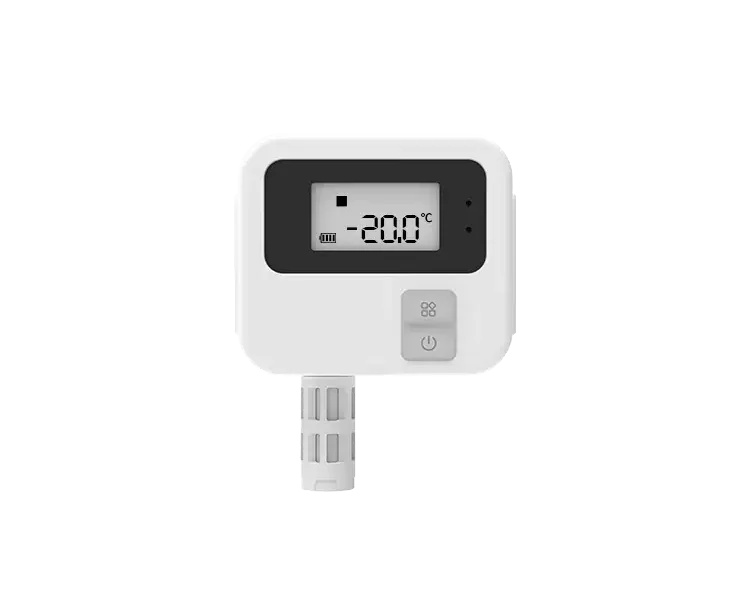

MST01
The MST01 provides reliable temperature and humidity monitoring for demanding industrial environments. It supports long-range broadcasting up to 656 ft (200 m) and customizable alarms.
Optional probes allow flexible measurements for manufacturing, healthcare, and warehousing applications.
MST01
Key Features
Reliable monitoring with high measurement precision, extended wireless coverage and flexible probe support.
02
20,480 Local Data Storage
Stores up to 20,480 measurement records locally, allowing data to be retained for later use.
03
4 Optional Probes
Supports up to four optional probes, providing greater flexibility for different monitoring requirements.
04
Wide-Range Temperature Monitoring
Monitors temperature across a broad range from −40°C to 125°C for demanding operating conditions.
05
Temperature & Humidity Alarm Threshold
Supports configurable temperature and humidity threshold monitoring for timely alerts.
06
656 ft (200 m) Broadcast Range
Provides wireless transmission over distances of up to 656 feet (200 meters), helping maintain broad coverage.
07
IP67 Dust & Water Resistance
Built with IP67 protection to help resist dust and water exposure in challenging environments.
MST01
Product Specifications
Detailed technical, measurement, wireless, power and environmental specifications of the MST01 sensor.
General
Version
MST01
Features
Breathable hot temperature & humidity probe
Body material
ABS + PC
Wire material
/
Main body size
75×65×27mm (without bracket)
82×65×27mm (with bracket)
82×65×27mm (with bracket)
Probe size
Φ15.5×48mm
Weight
106.3g
Sensor
Digital humidity and temperature sensor
Temperature
Temperature range
−30°C ~ 70°C
Temperature accuracy
±0.3°C (0~30°C)
±0.5°C (other range)
±0.5°C (other range)
Temperature resolution
0.01°C
Temperature units
°C / °F
Humidity
Humidity range
0~100%RH
Humidity accuracy
±5%RH
Humidity resolution
0.01%RH
Storage & Recording
Logging capacity
20,480
Recording mode
Cycle storage (older data is automatically overwritten
when capacity is full)
Wireless & Connectivity
Bluetooth chipset
Nordic nRF52 series
Protocol
Bluetooth® LE 5.0
Broadcast power
−40dBm ~ +4dBm
Broadcast range
200 m (open area)
Power
Battery capacity
2,700 mAh (lithium battery)
Battery life
3 years (default)
Functions
LCD display
Supported
Buzzer
Supported
OTA
Supported
Security
Supports password-protected connections to prevent
unauthorized access and modifications.
Environmental
Operating temperature
−30°C ~ 70°C
Operating humidity
0~95%RH, no condensation
Protection
IP65
