01
8-Channel Camera Support
Connect and manage up to eight cameras to create a broader view of the vehicle, helping operators monitor multiple areas from a single system.

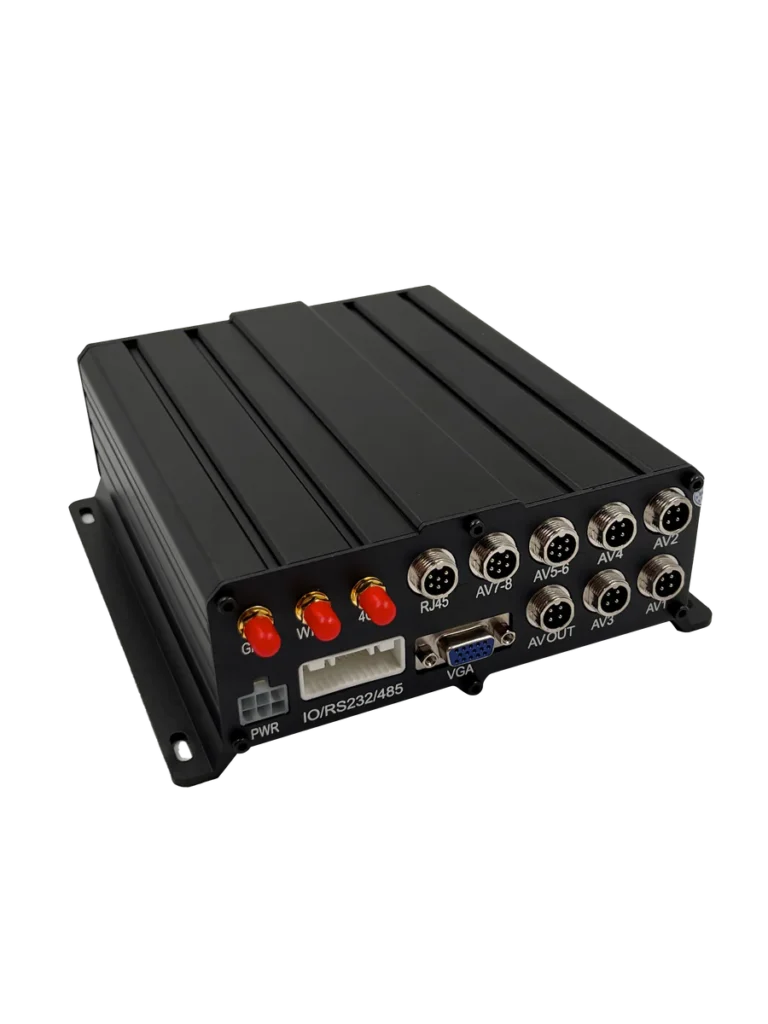

MC908
The MC908 4G MDVR is designed for remote video surveillance with support for up to eight cameras. It supports 1080P recording, H.265 compression, 4G connectivity, GPS/BDS positioning, and WiFi.
Its powerful processor enables reliable video recording and remote vehicle monitoring. Fleet managers can remotely access driving information, video footage, and important events.
The management platform supports live video surveillance, vehicle management, playback, and alarm analysis. Advanced AI features include ADAS, BSD, and DMS for improved driver safety.
These intelligent alerts help identify risks and support safer driving practices. The MC908 provides a complete solution for smarter and safer fleet management.
MC908
Key Features
Powerful multi-channel video monitoring with intelligent AI, flexible connectivity, extensive storage and convenient fleet management for complete vehicle visibility.
02
Intelligent AI Detection
Integrated AI capabilities support DMS, ADAS and BSD functions, helping identify driving risks and improve awareness around the vehicle.
03
Built-In WiFi Connectivity
The integrated WiFi connection can work as a hotspot, providing a convenient way to connect nearby devices for configuration and system access.
04
Multiple Input & Output Options
A wide selection of digital I/O, serial and other interfaces allows external equipment and vehicle accessories to be integrated according to operational requirements.
05
H.265/H.264 Encoding & Large Storage
Efficient H.265/H.264 video compression helps reduce storage usage while supporting TF card capacity up to 512GB for extended recording and data retention.
06
Easy & Convenient Operation
A user-friendly configuration interface makes everyday setup simple, with parameters accessible through the available control options for efficient operation.
MC908
Product Specifications
Detailed hardware, camera, network and operating specifications of the MC908 vehicle video recorder.
Hardware
Operation system
Linux
CPU
ARM Cortex CA9 Dual-Core + NPU@0.75T
GNSS
GPS+BDS (with external G-mouse)
Memory
DDR 1G
SATA HD (Max. 4T)*1, SD card (Max. 512G)*1
G-sensor
3-axis accelerometer & 3-axis gyroscope sensor
Speaker
Yes
Mic
Yes
Sim card
Standard SIM
LED
Red(Power), Green(GPS & 4G & WiFi & SD & HDD)
I/O ports
6*digital inputs + 1*RS232 + 1*RS485 + 1*RJ45
Others
1-channel voice intercom interface to connect voice handle
Network
Cellular
LTE + WCDMA + GSM
Bands
MC908-EU:
FDD LTE: B1/B3/B5/B7/B8/B20/B28
TDD LTE: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8
MC908-LA:
FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28
TDD LTE: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
MC908-NA:
FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5
WIFI
2.4GHz, 802.11 b/g/n
Protocol
JT/T808-2011, JT/T808-2019
JT/T1076-2016, JT/T1078-2016
Cameras
Extended
8-CH CVBS, 1.0Vp-p, 75Ω, 1080P
ADAS
Yes
DMS
Yes
BSD
Yes
360-degree panoramic view
Yes
Video encoding
H.264/H.265, default H.264
Video standards
PAL, NTSC
Video resolution
Options: 1080P/720P/D1/HD1/CIF
Total 1080P at 150 fps
Compression format
G.711A
Others
Power supply
DC: +9V ~ +36V
Operation Temperature
-10°C to +70°C
Operation Humidity
20% to 80%
Net weight
1600g
Dimension
195mm*183mm*60mm
Certification
CE/FCC/RoHS
