01
2K Quad HD Video Protection
Capture sharper road and vehicle surroundings with 2K Quad HD recording, helping preserve important visual details during driving and while the vehicle is parked.

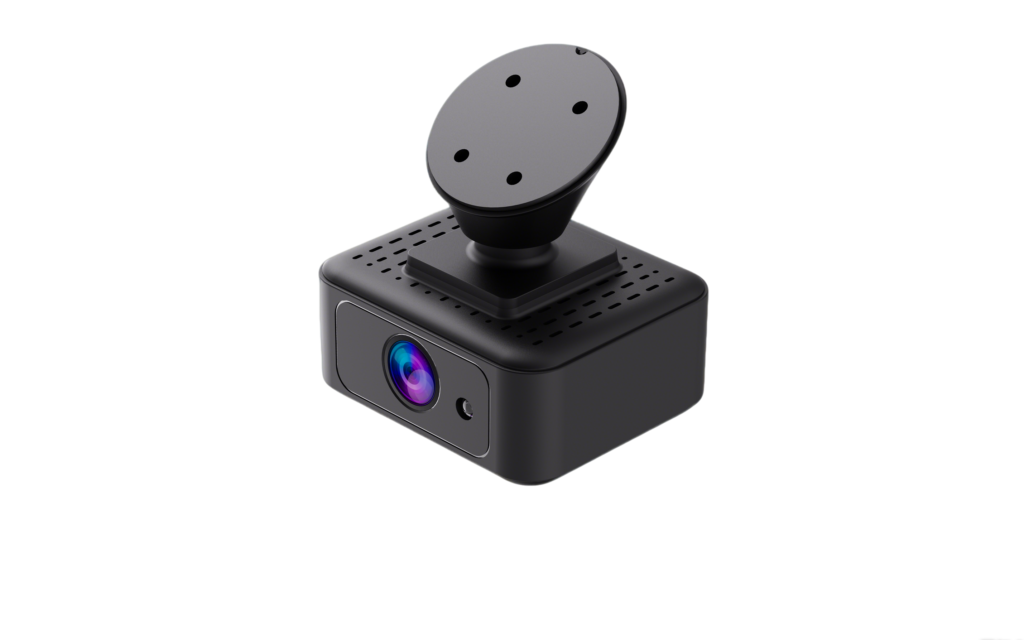

JC182
The JC182 is a compact road-facing camera designed for private cars, combining video recording with real-time vehicle positioning. Its built-in 4G and GNSS modules provide continuous recording and accurate location tracking.
The companion app helps you locate parked vehicles, monitor trips, and track vehicles remotely. You can also set geofence alerts to receive notifications about possible unauthorized vehicle movement.
The JC182 records important footage that can provide valuable evidence during accidents or unexpected incidents. Its real-time tracking and video monitoring features improve overall vehicle security and visibility.
With easy app-based access, drivers can monitor their vehicle anytime and from anywhere. It is an ideal solution for safer driving, vehicle tracking, and theft protection.
JC182
Key Features
Smart vehicle protection with high-definition recording, parking surveillance and dependable event detection.
02
Built-In Supercapacitor Backup
The integrated supercapacitor keeps essential functions available during sudden power loss, allowing alarms and recording to continue when external power is interrupted.
03
Time-Lapse Parking Recording
Record key moments around a parked vehicle in a time-lapse format, providing useful visual history while making more efficient use of available storage.
04
Collision Event Recording
Automatically preserve the moments surrounding an impact with pre-event and post-event footage, helping ensure important evidence is not missed.
05
Designed for Multiple Vehicle Types
Built to work across a wide range of vehicles, including conventional fuel-powered models and newer energy-powered vehicles for flexible deployment.
Product Specifications
Cellular
Technology
4G LTE Cat 1
Frequency
JC182-NA
LTE-FDD: B2/B4/B5/B7/B12/B14/B17/B25/B26/B66
LTE-TDD: B41
LTE-FDD: B2/B4/B5/B7/B12/B14/B17/B25/B26/B66
LTE-TDD: B41
Interface
LED indication
Red (Power), Blue (Cellular), Green (GNSS)
SIM
Nano-SIM
External memory
TF card (up to 512GB)
USB
Type-C
WiFi
2.4GHz, Support WiFi Direct
Microphone
Support
Speaker
Support
Sensor
6-Axis accelerometer
GNSS
Positioning system
GPS, AGPS
Camera
Front camera (main)
2560×1440 / 25FPS / F2.4 / Full color / 110° (HFoV)
Video format
.ts
Power
Input voltage
DC 9–30V
Operating Environment
Operating temperature
−20°C to +65°C
Storage temperature
−30°C to +85°C
Physical Specification
Dimensions
70.0 × 60.0 × 34.0mm
Feature
Configuration support
APP, Memory card
Firmware update
USB Cable, Memory card, OTA
Certification
CE, FCC
Standard Packing
JC182 unit
1
Screws
2
Screwdriver
1
Optional Configuration*
Optional configuration
N/A
