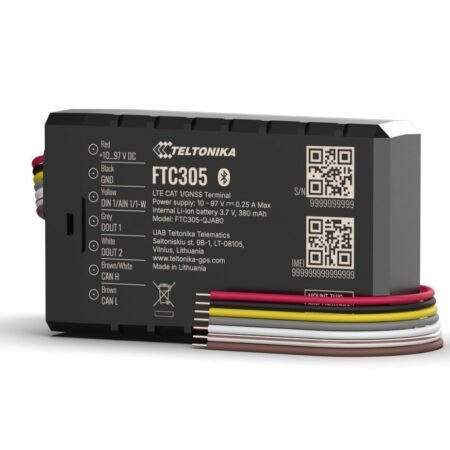

FTC305

The FTC305 is a compact 4G LTE Cat 1 GPS tracker designed for e-mobility applications. It combines accurate GNSS positioning with CAN data reading for reliable vehicle monitoring.

It supports GPS, GLONASS, GALILEO, and BEIDOU for precise location tracking. The device features digital and analog I/O, 1-Wire connectivity, and supports remote configuration and firmware updates through FOTA Web.

It is ideal for electric vehicles, e-mobility fleets, vehicle tracking, and smart transportation applications.

FMC305 CAPABILITIES

Smart Features for Connected E-Mobility

Built for reliable e-mobility tracking, flexible installation, and dependable vehicle monitoring across electric fleets.

CAN Data for E-Mobility Efficiency

Get crucial CAN parameters and create a custom parameter database to enhance the operational efficiency of your e-mobility fleet.

Perfect for High-Voltage Transport and Machinery

Solid 10–97 V power supply allows device integration in e-bikes, forklifts, shuttle cars, utility machinery, and other electric equipment.

Protection Against Dust and Water

Robust yet small IP67-rated casing provides trusted protection against dust and resistance to water, making it suitable for demanding environments.

Tailored for Factory Installation

Unique no-casing version of FMC305 with external antenna and larger battery capacity for mounting inside e-bike and e-bicycle frames.

PRODUCT SPECIFICATIONS

Product
Model name
FTC305-QJAB0 FTC305-QKAB0 FTC305-QJXB0 FTC305-QKXB0
Module
Name
FTC305-QJAB0: Quectel EG915U-EU with AG3335, internal antennas, casing version FTC305-QKAB0: Quectel EG915U-EU with AG3335, internal antennas, casing version FTC305-QJXB0: Quectel EG915U-EU with AG3335, external antennas, external battery, no casing version FTC305-QKXB0: Quectel EG915U-LA with AG3335, external antennas, external battery, no casing version
Technology
LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU
Receiver
L1: 75 channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 1.8 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Cellular
Technology
LTE CAT 1/GSM
2G bands
GSM: B2/B3/B5/B8
4G LTE bands
FTC305-QJAB0: LTE FDD (EG915U-EU): B1/B3/B5/B7/B8/B20/B28 FTC305-QJXB0: LTE FDD (EG915U-EU): B1/B3/B5/B7/B8/B20/B28 FTC305-QKAB0: LTE FDD (EG915U-EU): B2/B3/B4/B5/B7/B8/B28/B66 FTC305-QKXB0: LTE FDD (EG915U-LA): B2/B3/B4/B5/B7/B8/B28/B66
Data transfer
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power
Class 4 for GSM900: 33 dBm ± 2 dB Class 1 for DCS1800: 30 dBm ± 2 dB Class 3 for LTE-FDD: 23 dBm ± 2 dB
Data support
SMS (TEXT, PDU), Network protocols (TCP, UDP)
Data codec
Codec support
Codec 8 Extended
Power
Input voltage range
10 - 97 V DC
Internal Back-up battery
Casing version: 380 mAh Li-ion battery 3.7 V (1.41 Wh) No casing version: 1200 mAh Li-ion battery 3.7 V (4.44 Wh) (External)
Internal fuse
3 A, 125V
Power consumption
At 12V < 40 mA (Nominal with no load) At 12V < 0.25 A Max (with full Load/Peak)
Bluetooth® Technology
Specification
5.3 + LE* EYE sensors and EYE beacons support
Physical specification
Dimensions
Casing version: 69 × 41 × 20.9 mm (L × W × H) No casing version: 62 × 39.6 × 11.5 mm (L × W × H)
Weight
Casing version: 76.8 g No casing version (with accessories): 126.1 g
Operating environment
Operating temperature
-30 °C to +85 °C
Storage temperature
-30 °C to +85 °C
Operating humidity
65 ± 20% non-condensing
Ingress Protection Rating
Casing version: IP67 No casing version: N/A
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage conditions
Casing version: -10 °C to +25 °C for 3 or more months No casing version: -20 °C to +45 °C for 3 or more months
Interface
Digital Inputs
1
Digital Outputs
2
Analog Inputs
1
1-Wire
1
CAN
1
GNSS antenna
Casing version: Internal High Gain No casing version: External (SMA female connector)
Cellular antenna
Casing version: Internal High Gain No casing version: External (RP SMA female connector)
USB
2.0 USB Type-C
LED indication
2 status LED lights
SIM
Nano-SIM
Memory
128MB internal flash memory
Features
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, Unplug detection, Crash detection, Manual CAN data reading, Manual CAN commands
Sleep modes
Online sleep, Deep sleep, Power off sleep
Configuration and firmware update
FOTA WEB, Telematics Configuration Tool (TCT)
Time Synchronization
GNSS, NITZ, NTP
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Manual CAN
