01
Precise Temperature Monitoring
Continuously monitors temperature to help maintain suitable conditions throughout cold-chain logistics and indoor storage environments.

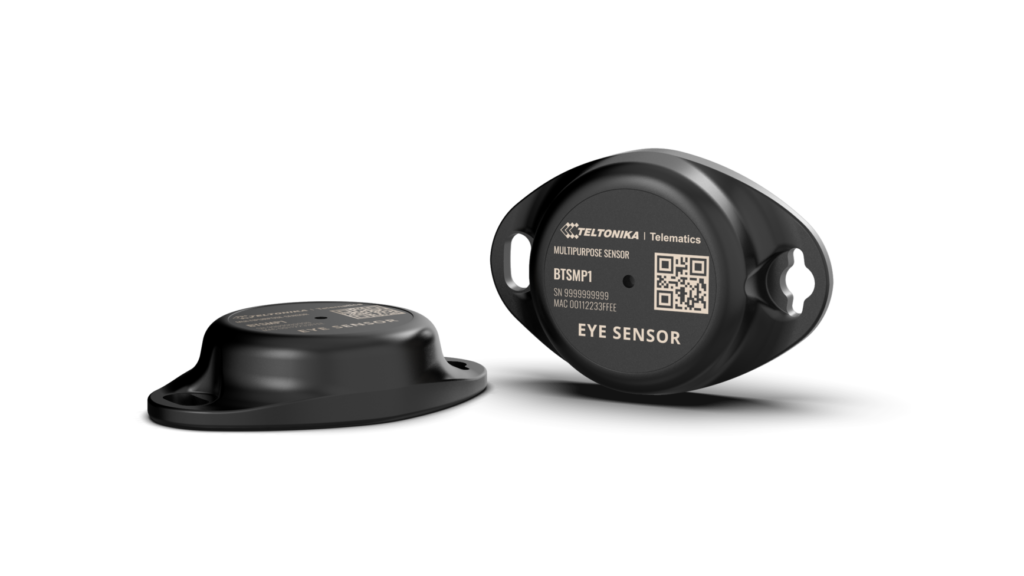

Eye Sensor
The Bluetooth Asset Monitoring Sensor tracks temperature, humidity, movement, and magnet status.
It provides reliable asset monitoring to help detect environmental changes and unauthorized movement.
EYE SENSOR
Key Features
A smart and reliable monitoring sensor designed for accurate temperature tracking, movement detection and convenient remote management.
02
Movement & Door Opening Detection
Detects asset movement and changes in door status, helping you keep track of whether equipment or storage areas are stationary, opened or closed.
03
Smart & Durable Design
Compact construction allows flexible installation in different positions, while the IP67-rated enclosure provides dependable protection for demanding conditions.
04
Eye App
Works with the Teltonika Eye mobile app for simple configuration, device management and convenient monitoring of sensor information.
EYE SENSOR
Product Specifications
Power
Model
CR2450
Type
Lithium, Manganese Dioxide (Li/MnO2)
Capacity
600 mAh
Replaceable
No
Battery life
Up to 2.5 years (Tx=2dBm; interval 3s)
Up to 4 years (Tx=2dBm; interval 5s), DEFAULT
Up to 5 years (Tx=2dBm; interval 10s)
Up to 4 years (Tx=2dBm; interval 5s), DEFAULT
Up to 5 years (Tx=2dBm; interval 10s)
Physical Specification
Dimensions
56.6 × 38 × 13 mm (L × W × H)
Weight
18 g
Features
Beacon ID
Yes
Sensors
Temperature
Humidity
Movement
Magnet detection
Humidity
Movement
Magnet detection
Scenarios
Temperature tracking, Mobile objects tracking,
Door status monitoring, Management of heavy-duty
vehicles, Goods tracking
Sleep mode
Hibernate
Configuration and firmware update
EYE APP
Certification & Approvals
Certificates
E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU),
REACH (EU), ANATEL, IP rating, SIRIM QAS,
SRRC, SDPPI, POSTEL
Electronics
Microcontroller
ST Microelectronics BlueNRG-2
Bluetooth operating frequency
2.402 - 2.480 GHz
Bluetooth antenna gain (peak)
1.2 dBi
Connectivity
Bluetooth®
Bluetooth® 4.2
Range
80 m
Transmission power level
Up to +8 dBm
Sensitivity
-88 dBm
Casing
Ingress protection
IP67
Mounting
Two mounting points on each side
Marking
Available branding customisation upon request
Environmental Requirements
Humidity (non-condensing)
From 0% to 100%
Operational temperature
-20°C / +60°C (-4°F / +140°F)
Protocol Compatibility
iBeacon
Yes*
*EYE APP on iOS doesn't show devices with iBeacon protocol
*EYE APP on iOS doesn't show devices with iBeacon protocol
Eddystone
Yes
Sensors (custom)
Yes
