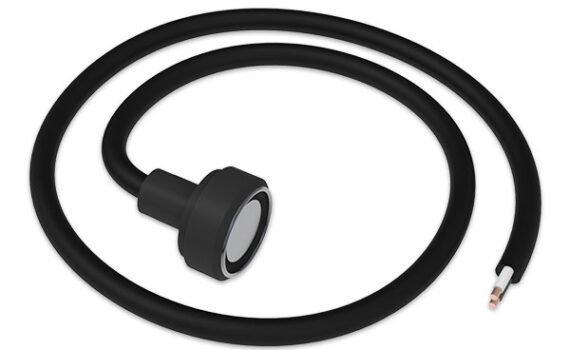

1-Wire iButton Reader

1-Wire iButton Reader & Tag

The 1-Wire RFID ID is a durable identification device for secure asset tracking and access control. It combines 1-Wire and RFID technology with a unique ID stored in non-volatile memory.

Designed for industrial environments, inventory management, and personnel identification. It supports reliable authentication and easy integration with 1-Wire readers and RFID scanners.

1-WIRE iBUTTON READER & TAG

Product Specifications

Operating environment

Operating humidity
5% to 95% non-condensing

Certification & approvals

Regulatory
RoHS certified

Technical data

Interface
White wire – 1-wire signal, Brown wire - Ground
Case material
Plastic (polyacetal)
Ring material
Ferrite steel with chrome plating
Signal joint material
Brass with chrome plating
Wire dimensions
2 wires Ø 0,25 mm2, 40 cm length
Fastening method
M12 screw, tape, glue, etc.
Operating temperature
From -40 °C to +85 °C
Supported 1-Wire commands
0x33 (0x0F) - Read ROM
0xF0 - Search ROM
